Whats New - Version 7.3.5

April 1 2016


return to main index



Args nodeid Registration

This version of Cutter is able to automatically register the nodeid of a plugin with the users custom RenderMan_for_Maya.ini. However, to do so Cutter's "User" refs must be set - figure 1.

For example, if the reader has followed the recommendations of the tutorial "RfM: Customizing" the paths would be those shown on the right.



Figure 1




osl source
    C:\Users\YOUR_NAME\Documents\maya\projects\RfM_osl\src
osl shaders
    C:\Users\YOUR_NAME\Documents\maya\projects\RfM_osl


Args dir
    C:\Users\YOUR_NAME\Documents\maya\projects\RfM_ris\Args
Plugins dir
    C:\Users\YOUR_NAME\Documents\maya\projects\RfM_ris
RfM.ini path
    C:\Users\YOUR_NAME\Documents\maya\projects\RfM_ini\RenderMan_for_Maya.ini

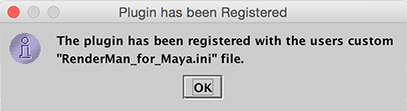

To use the auto-registration feature of Cutter right mouse click on the .args file whose nodeid is to be added to the RenderMan_for_Maya.ini - figure 2.



Figure 2


Cutter reads the nodeids that are currently loaded by the users RenderMan_for_Maya.ini and allocates a value that does not conflict with any nodeids that are already "registered".



Figure 3


For example, figures 2 and 3 shows the CutrBBones.args nodeid has been changed from,

    <rfmdata nodeid="1053502" classification="rendernode/RenderMan/pattern"/>
to,
    <rfmdata nodeid="1053509" classification="rendernode/RenderMan/pattern"/>

because 1053502 was already being used by another .args file. Cutter updates the RenderMan_for_Maya.ini as follows.

::RMS::LogMsg INFO "Loading nodeid:1053509 CutrBBones.args"
LoadExtension args [file join $projdir "RfM_ris/Args/CutrBBones.args"]

The LoadExtension text is based on the way the previous nodeid was "declared". For example, had the previous registration (CutrPetals.args) been specified as a full path the LoadExtension of the CutrBBones.args nodeid would be written as follows.

::RMS::LogMsg INFO "Loading nodeid:1053511 CutrPetals.args"
LoadExtension args "C:/Users/malcolm/Documents/maya/projects/RfM_ris/Args/CutrPetals.args"]

::RMS::LogMsg INFO "Loading nodeid:1053500 CutrBBones.args"
LoadExtension args "C:/Users/malcolm/Documents/maya/projects/RfM_ris/Args/CutrBBones.args"

Cutter will attempt to resolve duplicate nodeids but if it is unsuccessful an error message will be shown.



Figure 4


After the error dialog window has been OK'd Cutter will generate a report of the .args files that use the same nodeids. For example.



Figure 5


A similar "report" can be generated using the Rman Tool->Plugin menu.



Figure 5
